產品說明：

Introduction

該系列產品為典型的雙鍋筒縱置式"D"型布置快裝水管鍋爐。它由上下鍋筒、膜式水冷壁、過熱器、對流管束及省煤器組成，燃燒器布置在前墻，燃料在爐膛內燃燒后，煙氣經過熱器、對流管束及省煤器排入煙囪。該產品結構緊湊，占地面積小，火焰充滿度好；采用下支承方式，能自有向上膨脹；爐膛水冷壁及對流煙道全部采用膜式壁結構，密封性好且有效降低耐火磚的使用及維修工作量；外包裝采用彩鋼板，外形美觀、漂亮；采用全自動燃燒器，燃燒效率高并具有點火程序控制及超壓、熄火保護功能；采用快裝結構，能有效縮短安裝周期。

The series boiler is typical double drums and package water-tube boiler with D arrangement It consists of steam and water drum,memberane wall,superheater,convective bank and economizer.Lay out the burner at the front wall.When fuel has been bumed inside of the furmace,the smoke goes through the superheater and economizer.And last goes to the chimney.The product is less occupying area with compact structure has good tightness and reduce the amount of fire bricks and maintenance load.The external packing uses colour steel plate with beautiful appearance.Fully-automatic combustor is used with high burning efficiency and ignition control program.It also has over pressure and flameout protective functions takes package structure to shorten installation period.

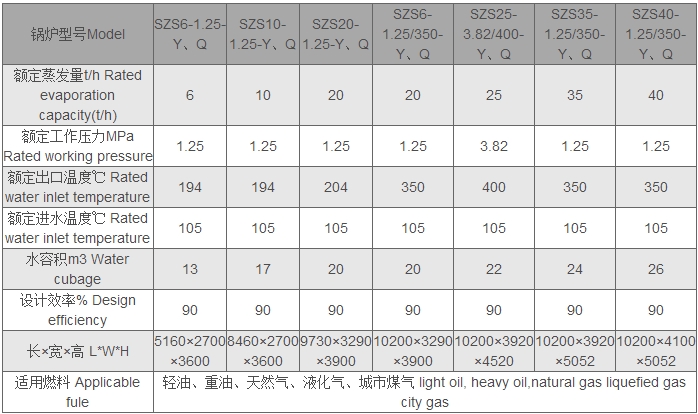

產品范圍

Scope

蒸發量：35-37t/h，壓力：3.82-5.3Mpa,蒸汽溫度：450-540℃

Evaporation capacity:35-75t/h,pressure:3.83-5.3Mpa,steam temperature:450-540℃

注：由于本公司產品不斷改進，以上產品參數將不斷更新，本頁所列僅供參考。表列鍋爐品種為本廠代表產品，如需其他型號參數鍋爐可參閱有關圖紙資料
Parameters listed herein are just for reference as those are subject to continuous modification with prduct upgrading.
Listed models are typical.If other models are needed,please refer to drawings and data available.
